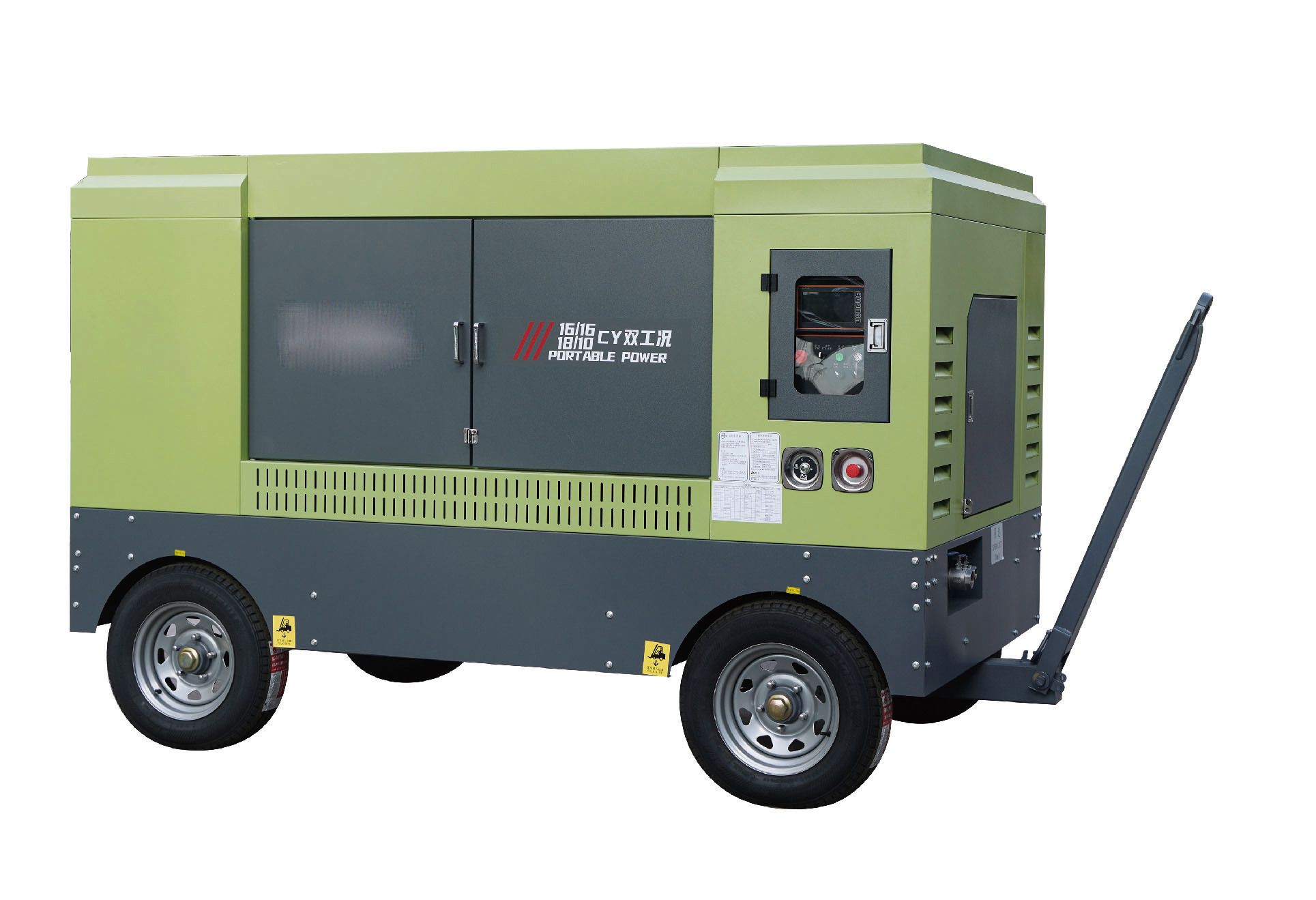

Diesel Engine Driven Mobile Dual Duty Screw Air Compressor

SPECIFICATION

Product Features

1. It is equipped with famous brand diesel engines, such as Cummins, Yuchai, etc.

2. It is equipped with heavy duty head with excellent performance and upgraded energy efficiency.

3. It is equipped with integrated normally open/close function to solve several problems, such as low temperature start difficulty of normal air inlet valve, piston seal failure, etc.

4. It is equipped with Fleetguard Brand air filter system, double filter element of which ensures that compressor intakes cleaner air.
5. It is equipped with high temperature resistance design function, which makes it meet high temperature requirements
6. It is equipped with full automatic control and protection system.

Technical Specifications

Type	KYLC-19/21-21/18CY	KYLC-17/18-18/15CY	KYLC-16/16-18/10CY	KYLC-14/18-17/12CY
Air consumption m³/min	19/21	17/18	16/18	14/17
Pressure MPa	2.1/1.8	1.8/1.5	1.6/1.0	1.8/1.2
Diesel engine/Motor	Yuchai/Cummins	Cummins	Cummins	Yuchai
Power kW	191/194	154/157	154	140
Standard condition	Dual duty	Dual duty	Dual duty	Dual duty
Max. Operating speed rpm	1850/1950	1850/1950	1850/2000	1800/2000
Idling rpm	1450/1500	1450	1450	1420
Oil tank capacity L	350	230	230	230
Venting ball valve	G2”/G11/2”	G11/2”/G1”	G11/2”/G1”	G11/2”/G1”
Tire type	Two tires/Four tires	Two tires/Four tires	Two tires/Four tires	Two tires/Four tires
Overall dimensions mm	3200 x 2000 x 2450	3050 x 1605 x 2042	3050 x 1605 x 2042	3050 x 1605 x 2042
Weight Kg	3500	2700	2500	2400
Noise	95	85	85	85
Applicable temperature ℃	-10 - 50	-10 - 50	-10 - 50	-10 - 50
Altitude m	3000	3000	3000	3000
