Product Features

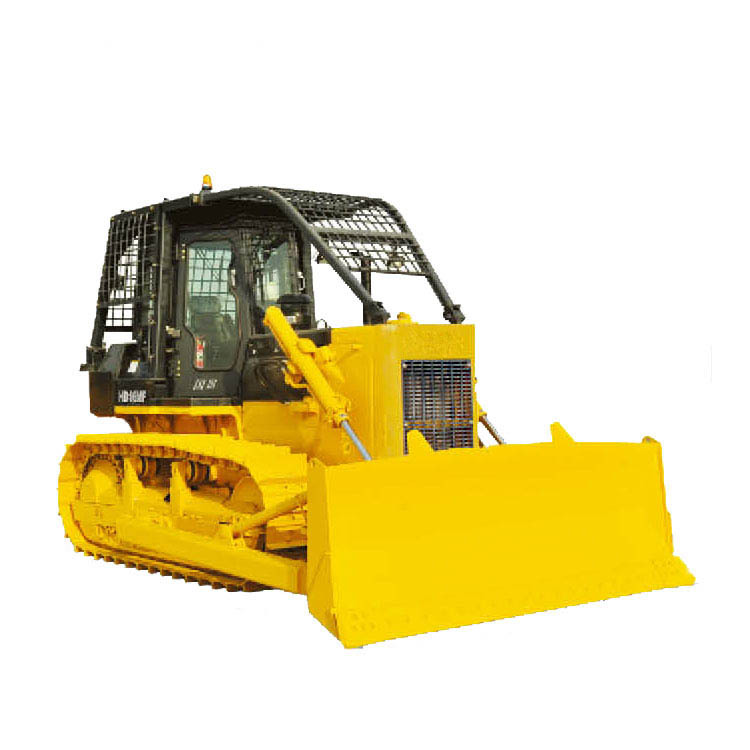

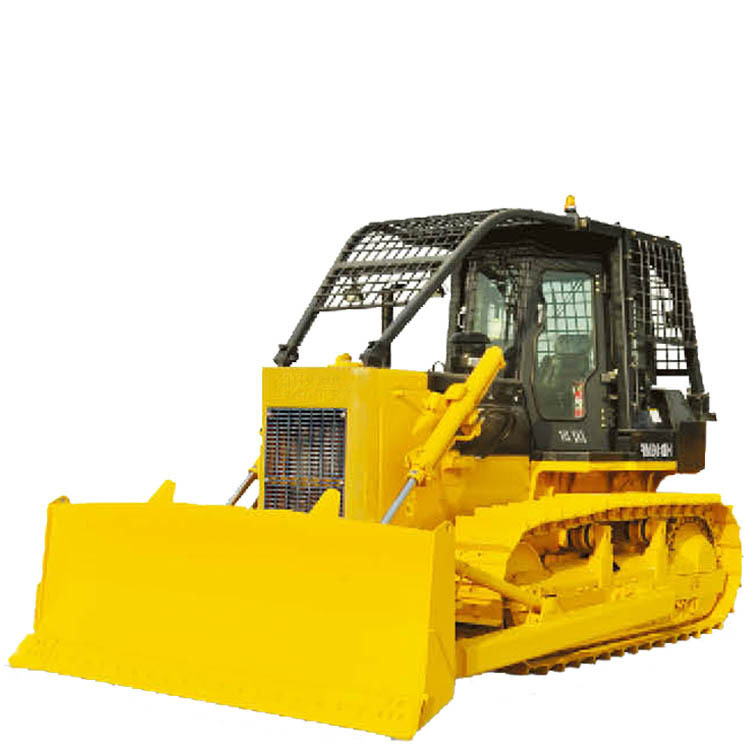

1.HD16F forest logging bulldozer is developed according to the needs of forest operation environment. It adopts hydraulic transmission, hydraulic control technology, and forward anti roll frame to effectively protect the whole machine. It has advanced and reasonable structure, stable performance, and easy and flexible operation.
2.It is applicable to the construction operations in forest logging sites. At the same time, a winch is equipped at the rear end of the bulldozer to complete forest logging consignment and other operations requiring traction by means of winch traction. If necessary, a winch can be equipped for bulldozer self rescue when working in dangerous areas.
3.The standard logging shovel can forcefully clear all kinds of thorns and obstacles on the logging road, so that the bulldozer can efficiently complete the logging operation.
4.The winch is used for dragging trees and bulldozer self rescue in forest operation. The powerful traction ensures efficient operation efficiency, and the unique self rescue function of the winch ensures the safety of the operator.
Technical Parameters
|
Model |
HD16F |
|
Dimension (mm) |
5200×3440×3260 |
|
Weight (T) |
16.8 |
|
Engine model |
WP10G178E355/WD10G178E25 |
|
Power (kw/r/min) |
131/1850 |
|
Minimum fuel consumption g/KW. h |
214 |
|
Grounding length (mm) |
2635 |
|
Ground specific pressure (MPa) |
0.063 |
|
Minimum ground clearance (mm) |
405 |
|
Gradeability (°) |
30 |
|
No. of track shoes (each side) |
39 |
|
Width of Track shoe (mm) |
510(560.610) |
|
Track Gauge (mm) |
1880 |
|
pitch (mm) |
203.2 |
|
No of carrier rollers (each side) |
2 |
|
No. of Track roller (each side) |
7 |
|
Maximum traction force (KN) |
144 |
|
Blade type |
Angle Blade Straight-tilt Blade |
|
Blade length x height (mm) |
Angle Blade:3970×1042 Straight-tilt Blade:3440×1150 |
|
Blade Capacity( m3 ) |
Straight-tilt Blade 4.5 Angle Blade 4.3 |
|
Blade lift height(mm) |
1095 |
|
Blade depth (mm) |
540 |
|
Maximum inclination of blade (mm) |
400 |
|
Forward (km/h) |
F1:0 〜 3.29 |
|
F2:0 〜 5.82 |
|
|
F3:0 〜 9.63 |
|
|
Reverse (km/h) |
R1:0 〜 4.28 |
|
R2:0 〜 7.59 |
|
|
R3:0 〜 12.53 |
|
|
Coolant capacity (L) |
79 |
|
Fuel tank capacity (L) |
300 |
|
Engine oil capacity (L) |
19 |
