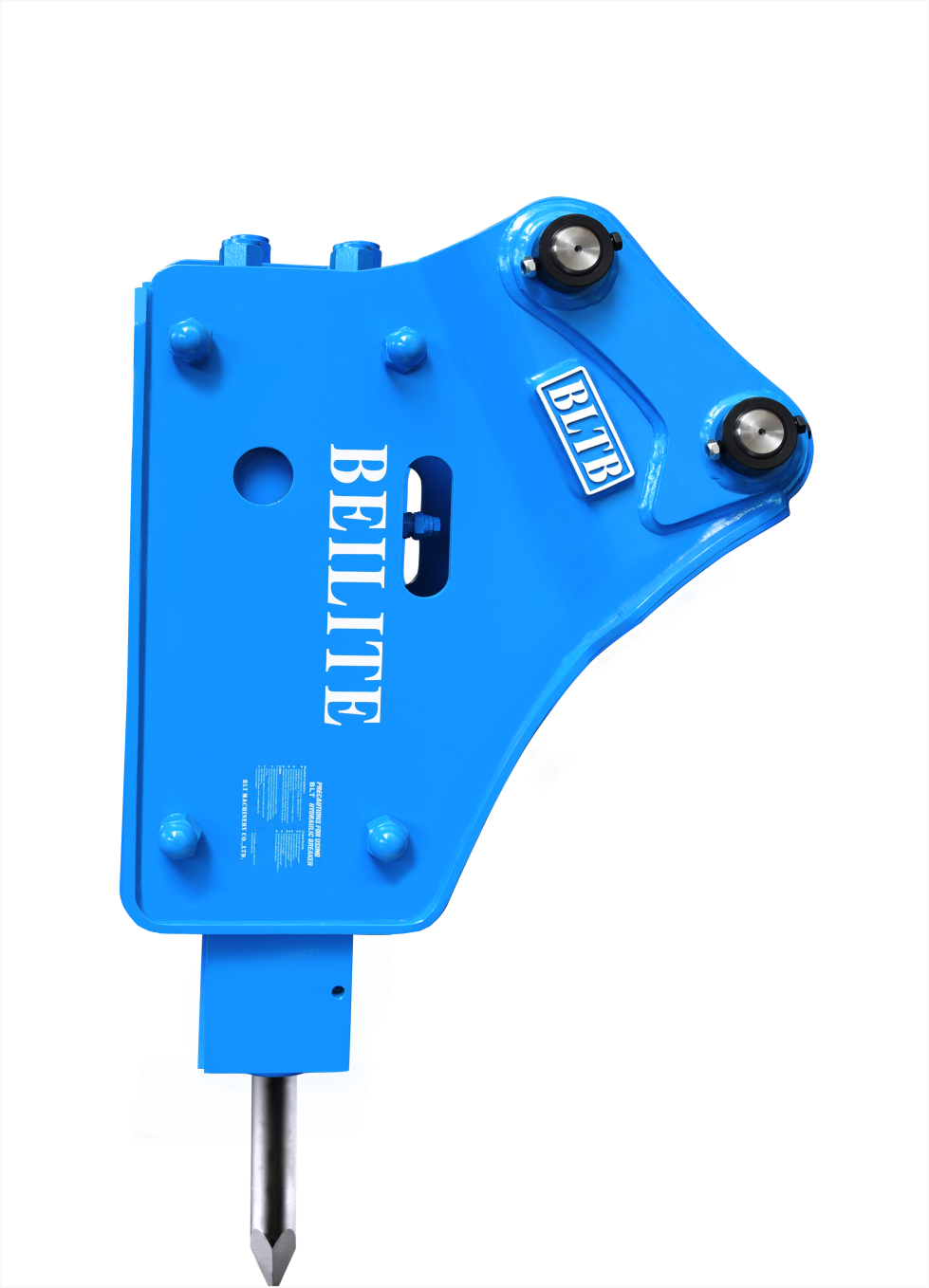

Hydraulic Breaker for Excavator

No. BLTB-45

This type is an excellent side hydraulic breaker for excavator with compact design and easy operation as well as improved performance design, which makes it integrates many advantages of the similar products. It is designed for the best use based on the customers demands.
It can be matched for the excavator: 0.8-1.5 ton; Drill rod:φ45.

GET A QUOTE

SPECIFICATION

Technical Specifications

Model	BLTB-45
Parameter	BLTB-45
Weight	Side	kg	105
Weight	Side	lb	231
Length	Side	mm	1071
Length	Side	inch	42.2
Working Oil Flow		l/min	20-40
Working Oil Flow		gal/min	5.3-10.6
Set Pressure		bar	140
Set Pressure		psi	2031
Working Pressure		bar	90-120
Working Pressure		psi	1305-1740
Impact Rate		bpm	700-1200
Hose Diameter		inch	1/2
Chisel Diameter		mm	45
Chisel Diameter		inch	1.8
Chisel Length		mm	500
Chisel Length		inch	19.7
N2 Pressure(Backhead)		bar	14-17
N2 Pressure(Backhead)		psi	203-247
N2 Pressure(Accumulator)		bar	/
N2 Pressure(Accumulator)		psi	/
Noise 85dB(A)-Distance		m	3-6
Applicable Excavator		t	0.8-1.5

Applicable for

Brand	Model
CAT	302.5C
KOMATSU	PC05 PC07-2
DOOSAN DAEWOO	SOLAR007/010
HYNUDAI	ROBEX28
HITACHI	EX8/12/17/18 UE10/12/15/20 EC22
VOLVO	EC20B
KUBOTA	15
SUNWARD	SWE17/18
ZOOMLION	ZE15E
