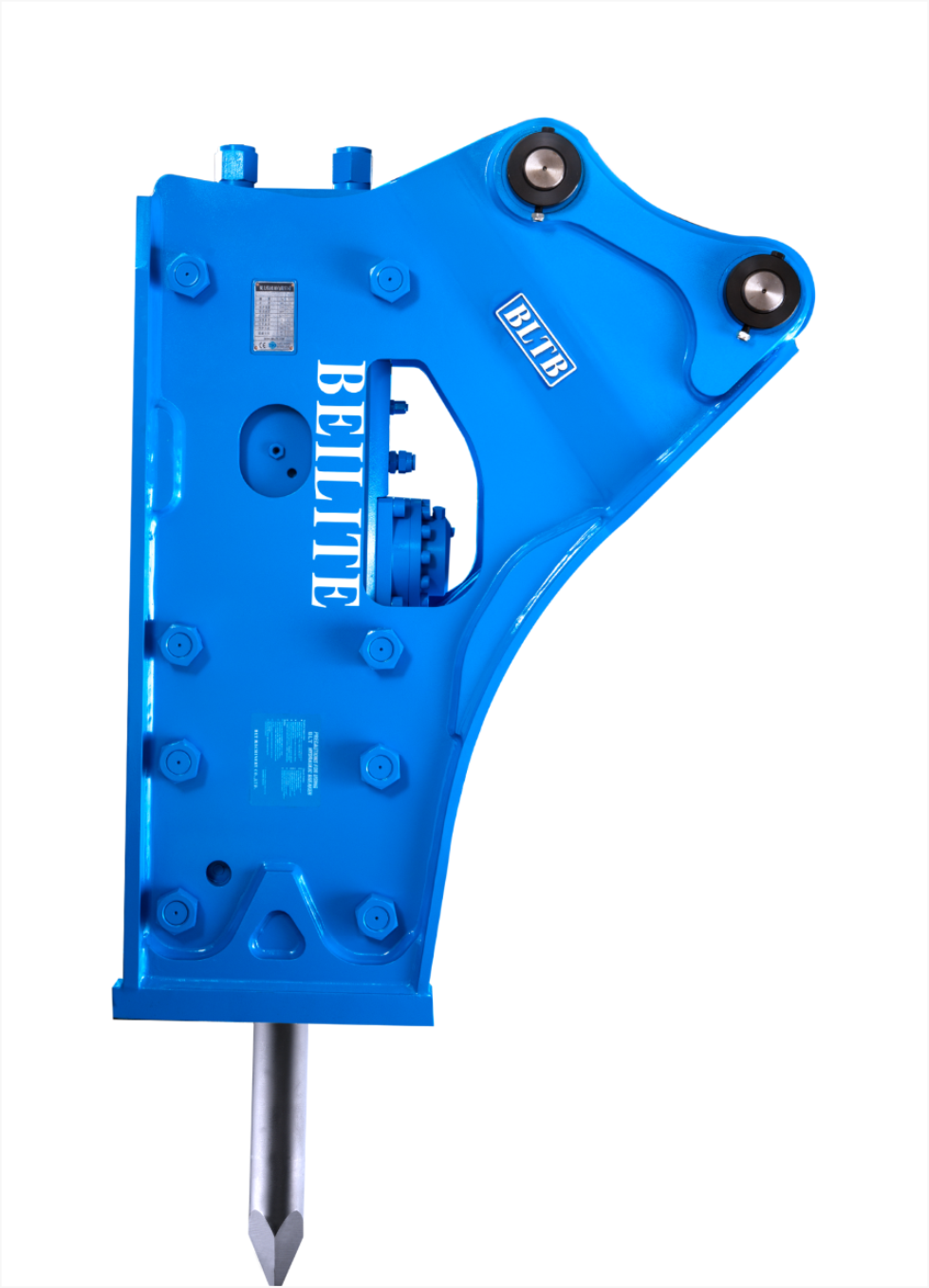

Hydraulic Breaker for Excavator

No.BLTB-150

This type is an excellent side hydraulic breaker for excavator with compact design and easy operation as well as improved performance design, which makes it integrates many advantages of the similar products. It is designed for the best use based on the customers demands.
It can be matched for the excavator: 25-30 ton; Drill rod:φ150.

GET A QUOTE

SPECIFICATION

Technical Specifications

Model	BLTB-150
Parameter	BLTB-150
Weight	Side	kg	2448
Weight	Side	lb	5397
Length	Side	mm	2609
Length	Side	inch	102.7
Working Oil Flow		l/min	130-190
Working Oil Flow		gal/min	34.3-50.2
Set Pressure		bar	230
Set Pressure		psi	3336
Working Pressure		bar	180-200
Working Pressure		psi	2611-2901
Impact Rate		bpm	200-300
Hose Diameter		inch	1 1/4
Chisel Diameter		mm	150
Chisel Diameter		inch	5.9
Chisel Length		mm	1300
Chisel Length		inch	51.2
N2 Pressure(Backhead)		bar	6-8
N2 Pressure(Backhead)		psi	87-116
N2 Pressure(Accumulator)		bar	55-60
N2 Pressure(Accumulator)		psi	798-870
Noise 85dB(A)-Distance		m	21-30
Applicable Excavator		t	24-27

Applicable for

Brand	Model
CAT	325 330
KOMATSU	PC250 PC270 PC300
DOOSAN DAEWOO	DH300
HYNUDAI	R260 R290
HITACHI	ZX280 ZX300
KOBELCO	SK270 SK300 SK320 SK300E
VOLVO	EC290
SANY	SY285C-9 SY305C-9H SY335C-9 SY335C-9H SY365C-8
STRONG	JCM933D JCM927D GC338LC-8
LINGONG	LG6300E
SUNWARD	SWE330
ZOOMLION	ZE330E
XCMG	330
