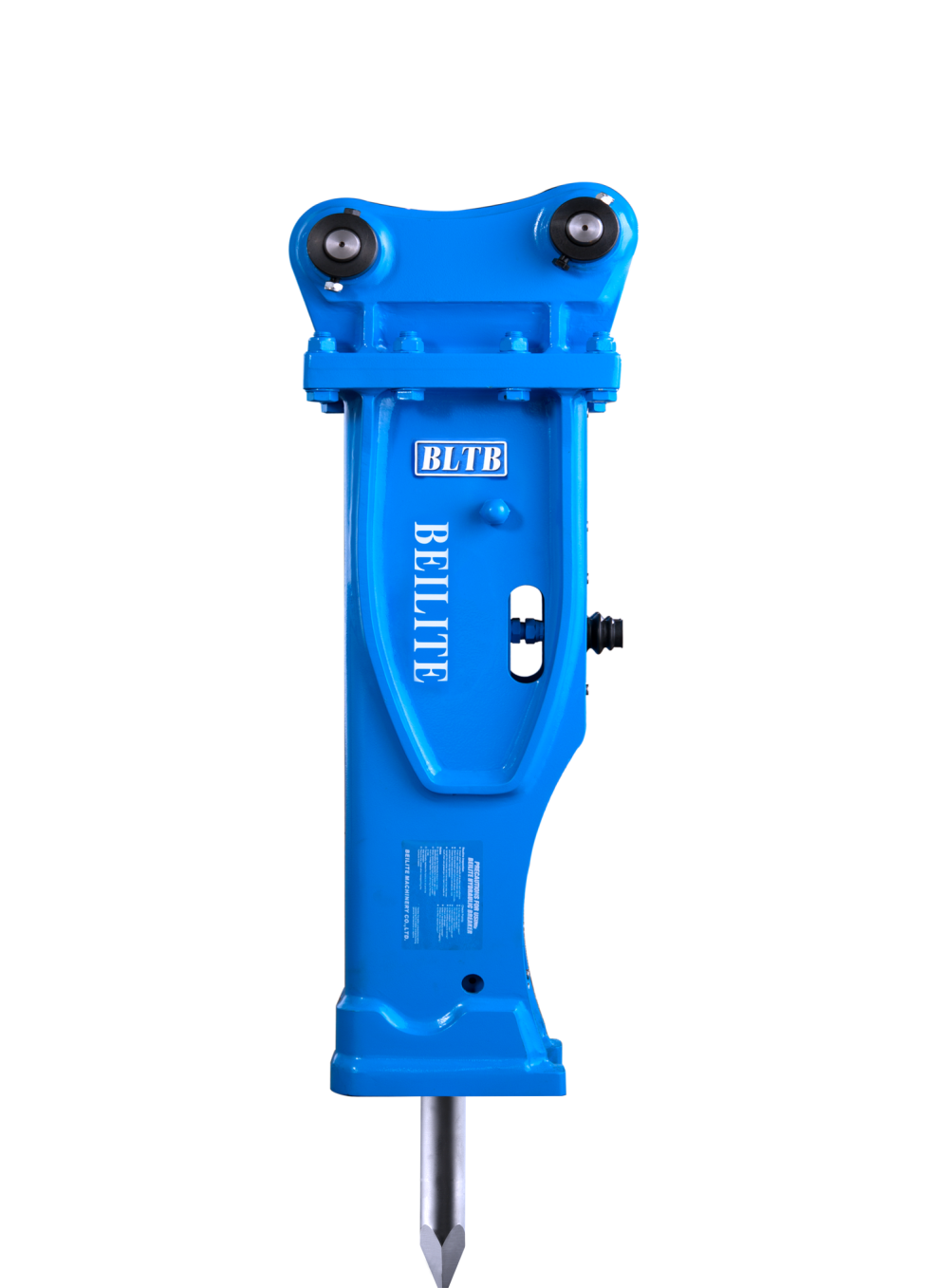

| Model | BLTB-45 | ||
| Parameter | |||
| Weight | Silenced | kg | 137 |
| lb | 302 | ||
| Length | Silenced | mm | 1279 |
| inch | 50.4 | ||
| Working Oil Flow | l/min | 20-40 | |
| gal/min | 5.3-10.6 | ||
| Set Pressure | bar | 140 | |
| psi | 2031 | ||
| Working Pressure | bar | 90-120 | |
| psi | 1305-1740 | ||
| Impact Rate | bpm | 700-1200 | |
| Hose Diameter | inch | 1/2 | |
| Chisel Diameter | mm | 45 | |
| inch | 1.8 | ||
| Chisel Length | mm | 500 | |
| inch | 19.7 | ||
| N2 Pressure(Backhead) | bar | 14-17 | |
| psi | 203-247 | ||
| N2 Pressure(Accumulator) | bar | / | |
| psi | / | ||
| Noise 85dB(A)-Distance | m | 3-6 | |
| Applicable Excavator | t | 0.8-1.5 | |
|
Brand |
Model |
|
CAT |
302.5C |
|
KOMATSU |
PC05 PC07-2 |
|
DOOSAN DAEWOO |
SOLAR007/010 |
|
HYNUDAI |
ROBEX28 |
|
HITACHI |
EX8/12/17/18 UE10/12/15/20 EC22 |
|
VOLVO |
EC20B |
|
KUBOTA |
15 |
|
SUNWARD |
SWE17/18 |
|
ZOOMLION |
ZE15E |
