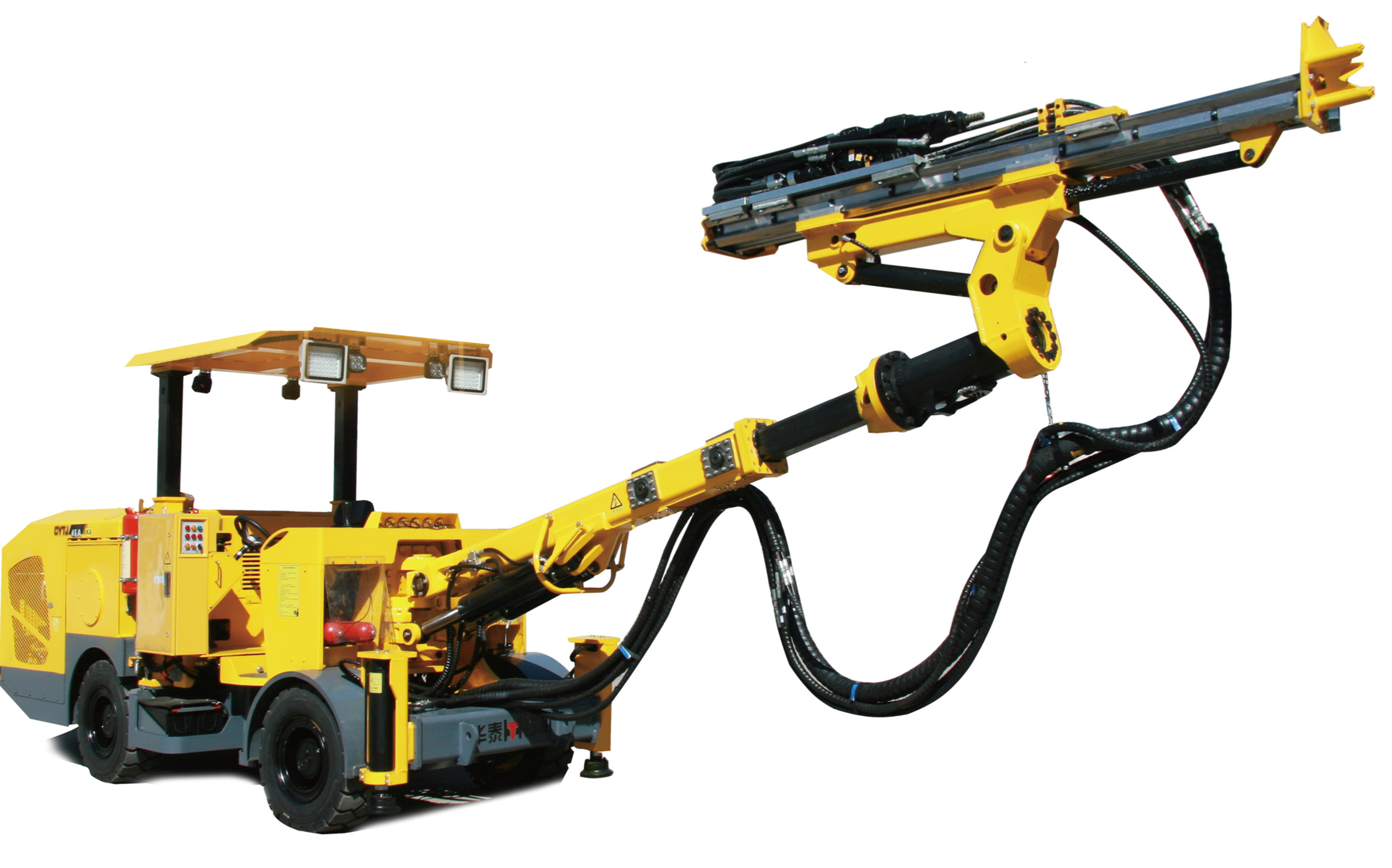

CYTJ45C hydraulic drilling jumbo is designed for drilling at multi-working sites in short time. The rig is self-contained diesel hydraulic carrier with on-board water tank and air compressor. Therefore, there is no need to connect external power, water and air. It is especially suitable for low level ore reduction in natural caving method, and oversized rock secondary breaking which is not be transported. Besides, it ensures low-level large rock boulders dealing safety at draw points, and improves working efficiency.
Technical Specifications
| Item | 14U |

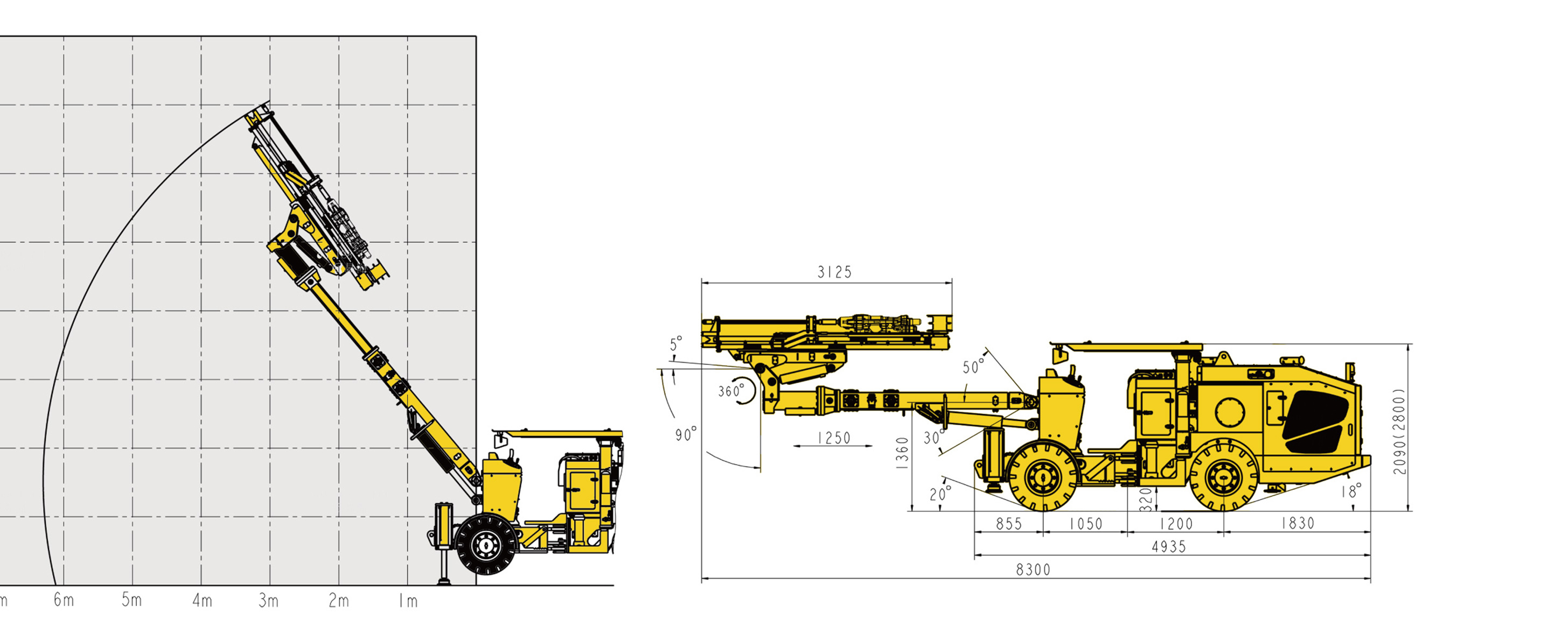

| Overall Dimension | 8300*1800*2090(2800)mm |
| Min. Turning Radius | 2600(internal) 4800(external) mm |
| Min. Ground Clearance | 320mm |
| Total Weight | 10500Kg |
| Hole Size | φ45mm |
| Hole Depth | 1200mm |
| Drilling Tools | 1525mm |
| Impact Power | 14Kw |
| Impact Frequency | 49Hz |
| Feed Swing Angle | ±35° |
| Feed Compensation Stroke | 900mm |
| Pitch Angle of Drill Boom | Depression 30° Elevation 50° |
| Swing Angle of Drill Boom | ±35° |
|
Boom Extension |
1250mm |
|
Grade Ability |
14° |
