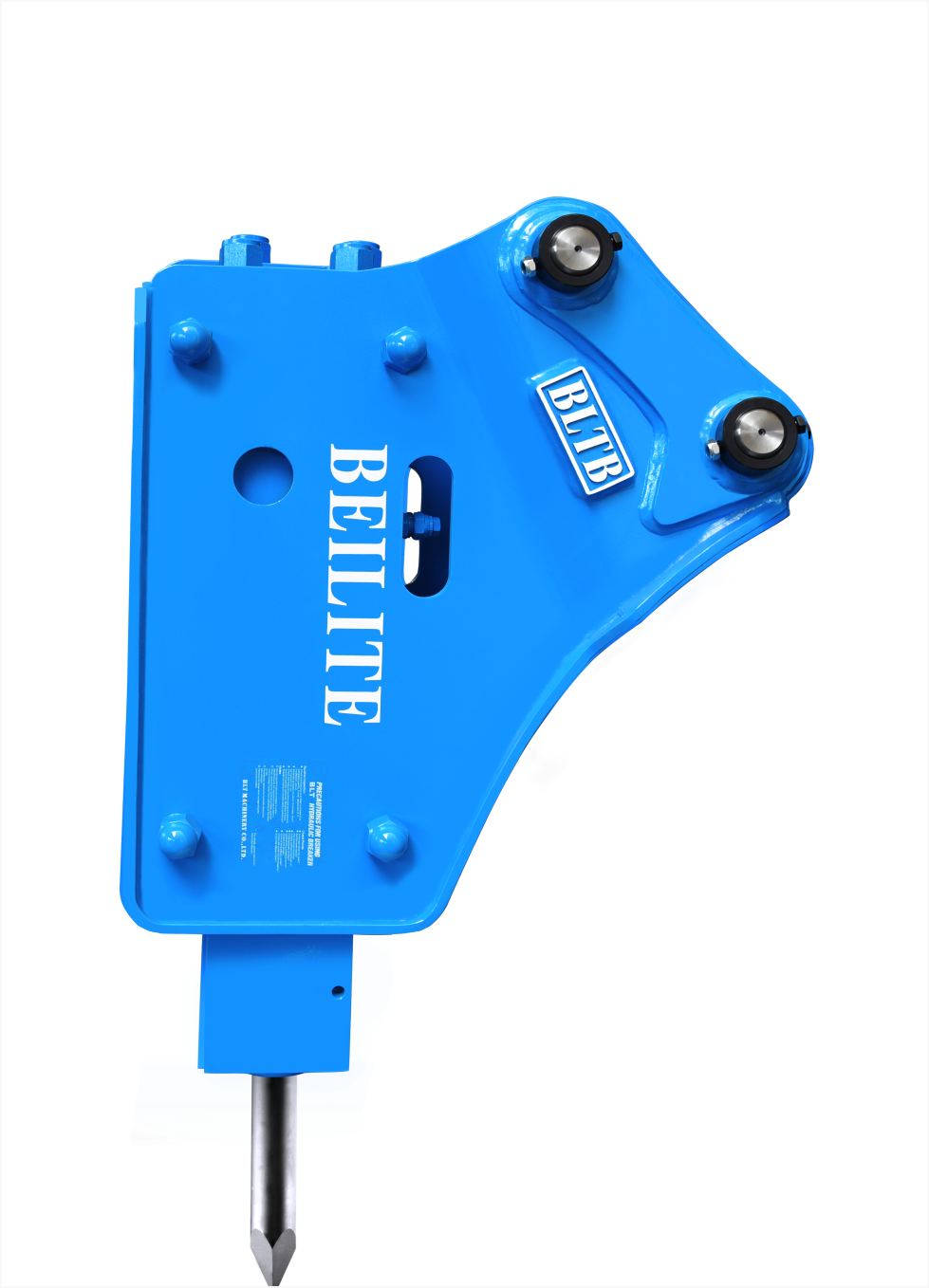

Hydraulic Excavator Breaker

No. BLTB-53

This type is an excellent side hydraulic excavator breaker with compact design and easy operation as well as improved performance design, which makes it integrates many advantages of the similar products. It is designed for the best use based on the customers demands.
It can be matched for the excavator: 2.5-4.5 ton; Drill rod:φ53.

GET A QUOTE

SPECIFICATION

Technical Specifications

Model	BLTB-53
Parameter	BLTB-53
Weight	Side	kg	161
Weight	Side	lb	355
Length	Side	mm	1170
Length	Side	inch	46.1
Working Oil Flow		l/min	20-50
Working Oil Flow		gal/min	5.3-13.2
Set Pressure		bar	150
Set Pressure		psi	2176
Working Pressure		bar	90-120
Working Pressure		psi	1305-1740
Impact Rate		bpm	600-1100
Hose Diameter		inch	1/2
Chisel Diameter		mm	53
Chisel Diameter		inch	2.1
Chisel Length		mm	580
Chisel Length		inch	22.8
N2 Pressure(Backhead)		bar	14-17
N2 Pressure(Backhead)		psi	203-247
N2 Pressure(Accumulator)		bar	/
N2 Pressure(Accumulator)		psi	/
Noise 85dB(A)-Distance		m	4-8
Applicable Excavator		t	1.5-3.5

Applicable for

Brand	Model
CAT	303C CR 303.5C CR
KOMATSU	PC10 PC12 PC15 PC20 PC27
DOOSAN DAEWOO	DH30 DSL602 SOLAR30/035
HYNUDAI	ROBEX35
HITACHI	EX25/27/30/33/34 UE30
KOBELCO	SK035
VOLVO	EC30/25/35 ZL302
KUBOTA	35
SUNWARD	SWE30/40
XCMG	40
