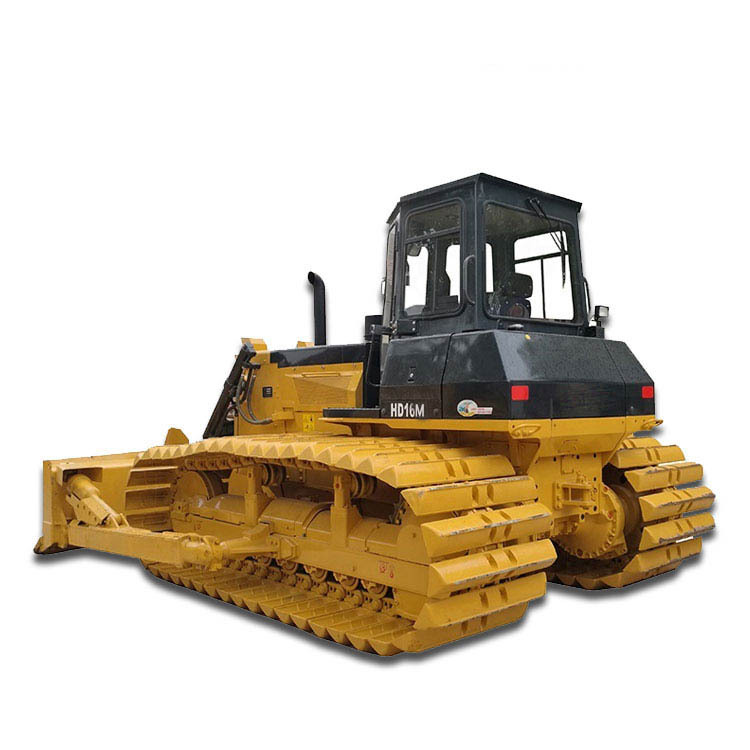

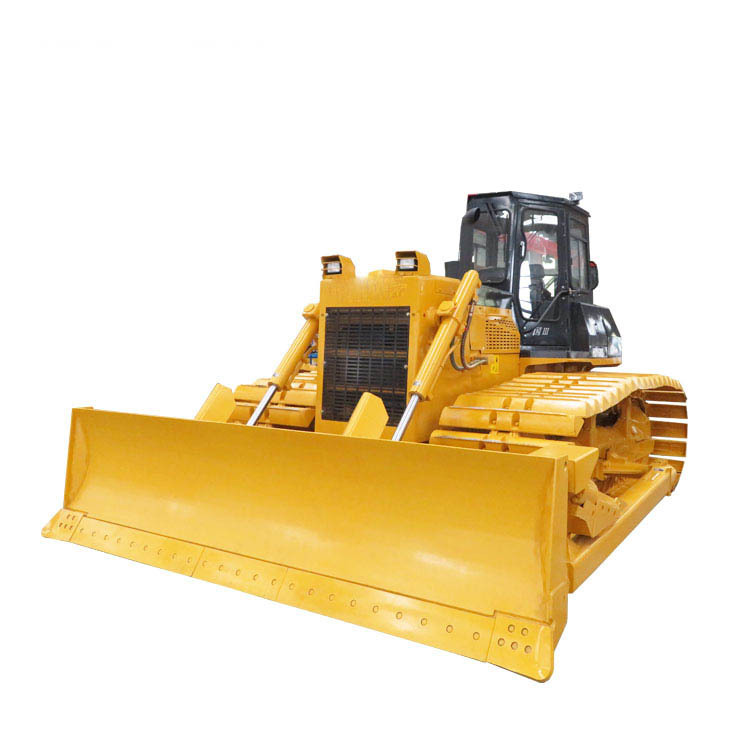

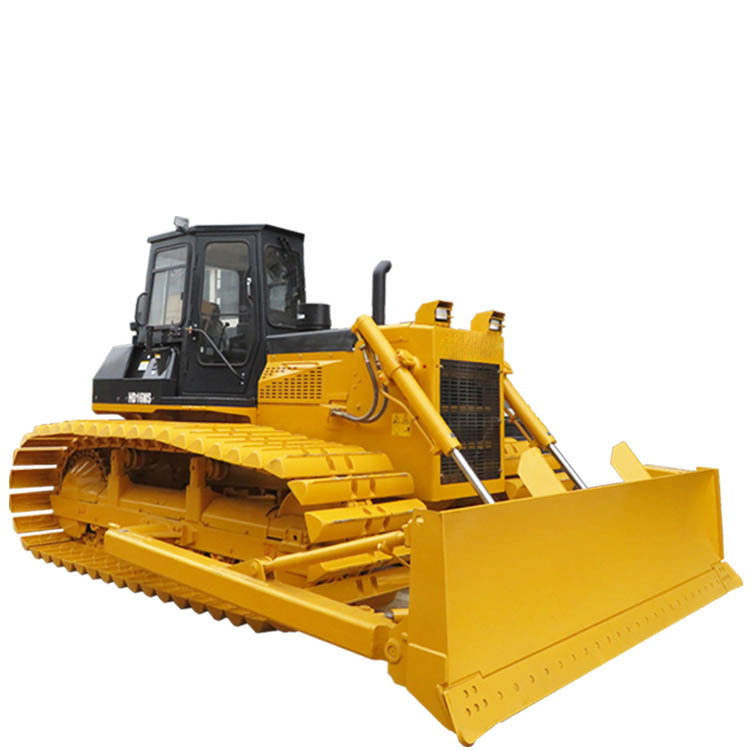

Mechanical Bulldozer

SPECIFICATION

Product Features

1.HD16M mechanical transmission series bulldozer adopts mechanical transmission, featuring high technology content, advanced and reasonable design, strong power and high production efficiency.

2.It is applicable to the transportation, excavation, backfilling of earthwork and other bulk materials on roads, railways, mines, airports and other surfaces. It is an indispensable engineering machinery for construction of national defense projects, mine construction, urban and rural roads and water conservancy construction.

Technical Parameters

Model	HD16M
Dimension (mm)	4990×3440×3110
Weight (T)	16.4
Engine model	WP10G178E355/WD10G178E25
Power (kw/r/min)	131/1850
Minimum fuel consumption g/KW. h	214
Grounding length (mm)	2430
Ground specific pressure (MPa)	0.066
Minimum ground clearance (mm)	405
Gradeability (°)	30
No. of track shoes (each side)	37
Width of Track shoe (mm)	510(560.610)
Track Gauge (mm)	1880
pitch (mm)	203.2
No of carrier rollers (each side)	2
No. of Track roller (each side)	6
Maximum traction force (KN)	144
Blade type	Straight-tilt Blade
Blade length x height (mm)	3440×1149
Blade Capacity( m3 )	4.5
Blade lift height(mm)	1095
Blade depth (mm)	540
Maximum inclination of blade (mm)	400
Forward (km/h)	F1:0 〜 2.67
	F2:0 〜 3.76
	F3:0 〜 5.41
	F4:0 〜 7.62
	F5:0 〜 11.13
Reverse (km/h)	R1:0 〜 3.48
	R2:0 〜 4.90
	R3:0 〜 7.05
	R3:0 〜 9.92
Coolant capacity (L)	79
Fuel tank capacity (L)	300
Engine oil capacity (L)	19
