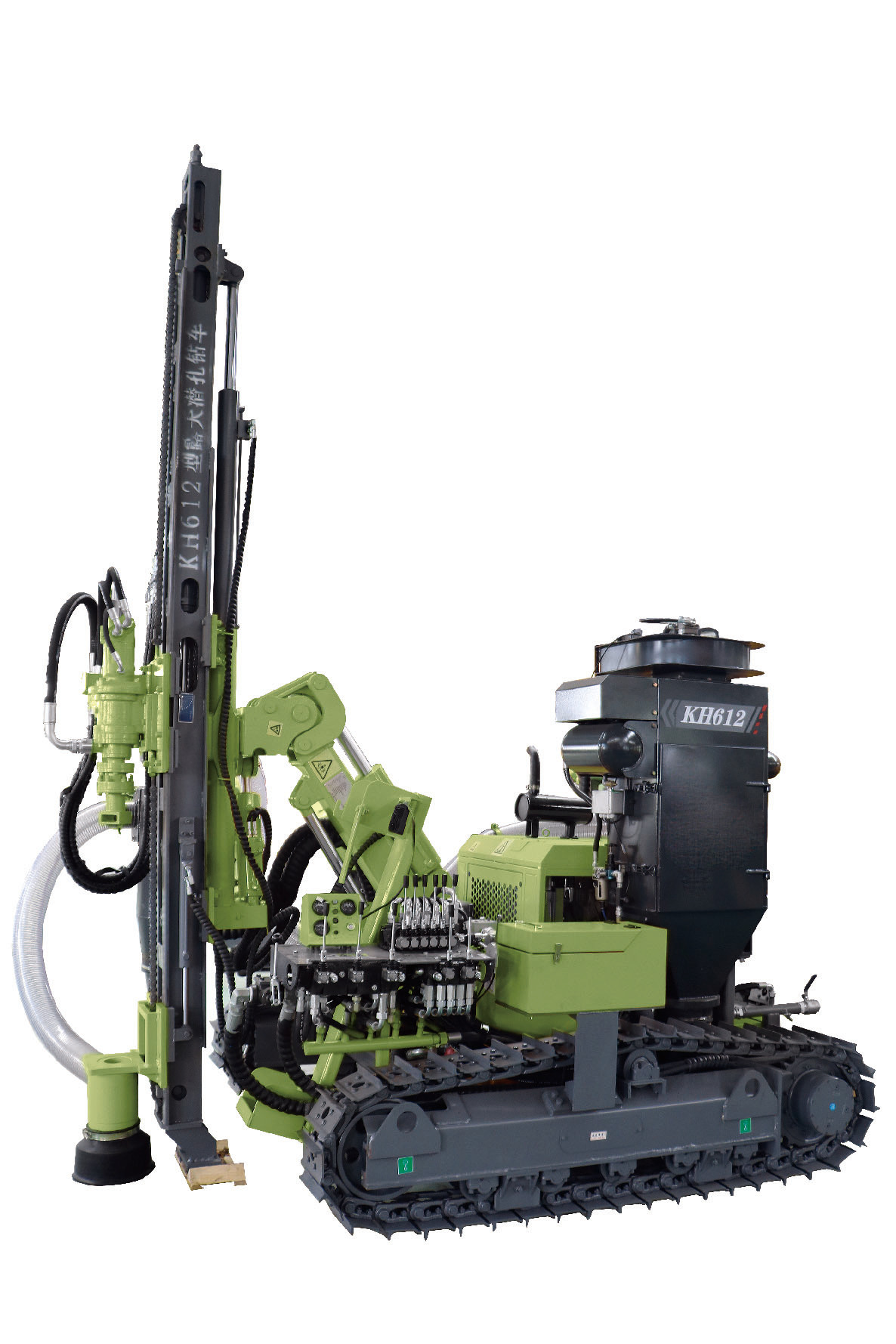

Open-pit Downhole Drill Rig

SPECIFICATION

Product Features

1. It is equipped with user-friendly integrated operation platform, which makes it convenient for operation.

2. It is equipped with well designed housing and nice appearance, which makes it convenient for check and maintenance.

3. It is equipped with efficient dust removal filter system including 8 groups of long filters and large air flow, which can meet environmental protection requirements.

4. It is equipped with single motor swivel head with 150r/min rotary speed, which meets requirements for high speed drilling in soft rock.

Technical Specifications

Supporting power	Yuchai
Rated Power	78kW
Drilling diameter	90-120mm
Drilling rod	Φ60mm x 2000mm
Depth of economical drilling	30m
Inches/DHT hammer	3"/4"
Working Pressure	0.8~1.6 Mpa
Air consumption	10~15 m3/min
Rotary torque(Max.)	1650 N.m
Rotary speed	70-150 r/min
Tramming type	Cylinder + chain
Tramming speed	0~2.5 km/h
Climbing capacity	25 °
Ground clearance	254 mm
Total Weight	4400KG
Outer dimensions/(LxWxH)	4500 x 2150 x 2500 mm
Drilling hardness	f=6~20
Volume of diesel oil tank	100 L
Method of dust collecting	8 Core Dry type
