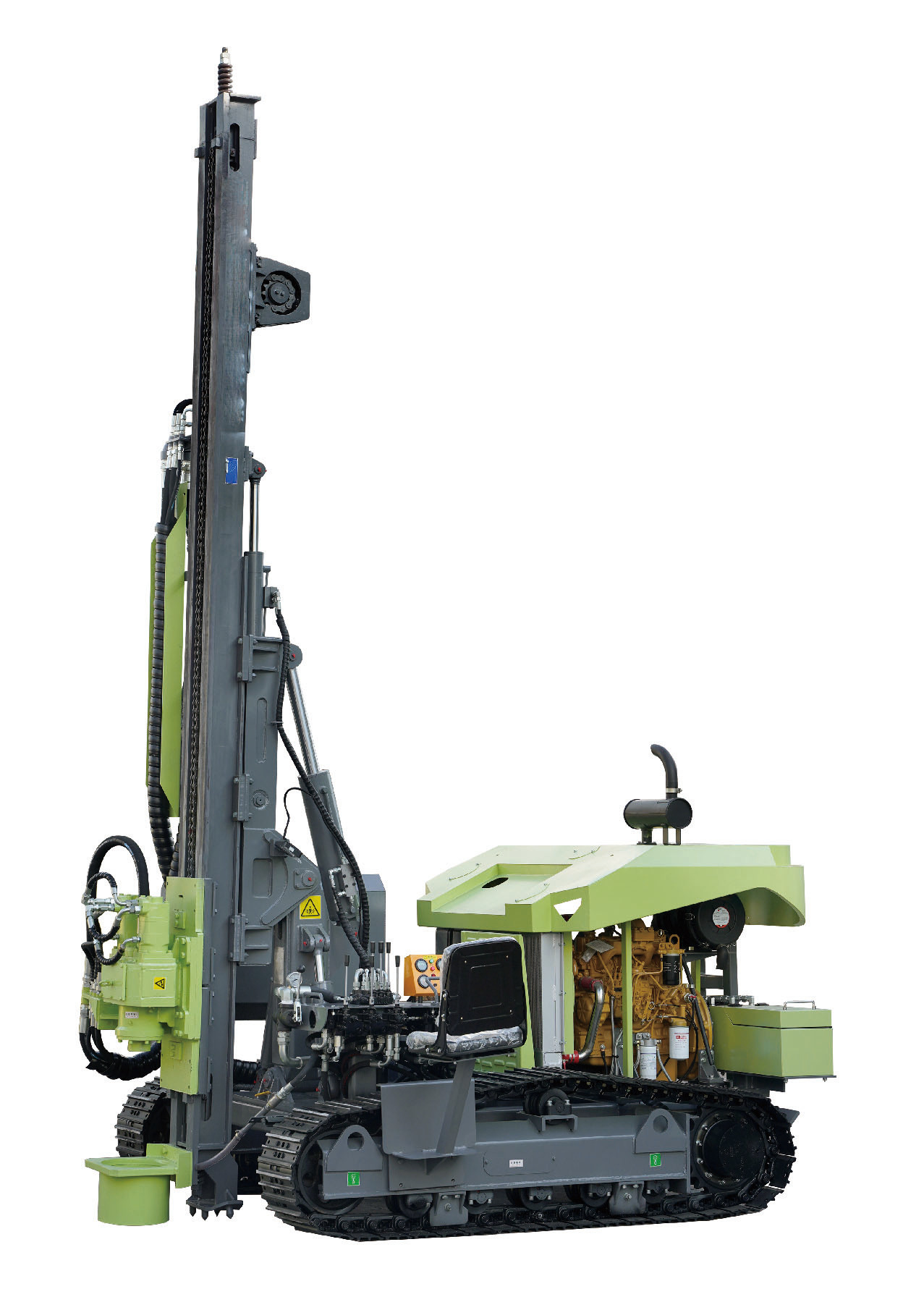

Open-pit Downhole Drill Rig

SPECIFICATION

Product Features

1. It is equipped with user-friendly integrated operation platform, which makes it convenient for operation.

2. It is equipped with well designed housing and nice appearance, which makes it convenient for check and maintenance.

3. It is equipped with efficient travelling system, which makes the towing air compressor climb easily.

4. It is equipped with double motor rotation to increase rotary torque and rotary speed, which makes drill rig works smoothly and safely under any rock stratum.

Technical Specifications

Supporting power	Yuchai
Rated Power	78kW
Drilling diameter	90-400mm
Drilling rod	Φ89mm x 3000mm
Depth of economical drilling	10m
Inches/DHT hammer	5"/6"
Working Pressure	1.0~2.4 Mpa
Air consumption	15~50 m³/min
Rotary torque(Max.)	8000 N.m
Rotary speed	0-80 r/min
Tramming type	Motor + chain
Tramming speed	0~2 km/h
Climbing capacity	30 °
Ground clearance	380 mm
Total Weight	5000KG
Outer dimensions/(LxWxH)	6400 x 2200 x 2550 mm
Drilling hardness	f=6~20
Volume of diesel oil tank	100 L
Method of dust collecting	None
