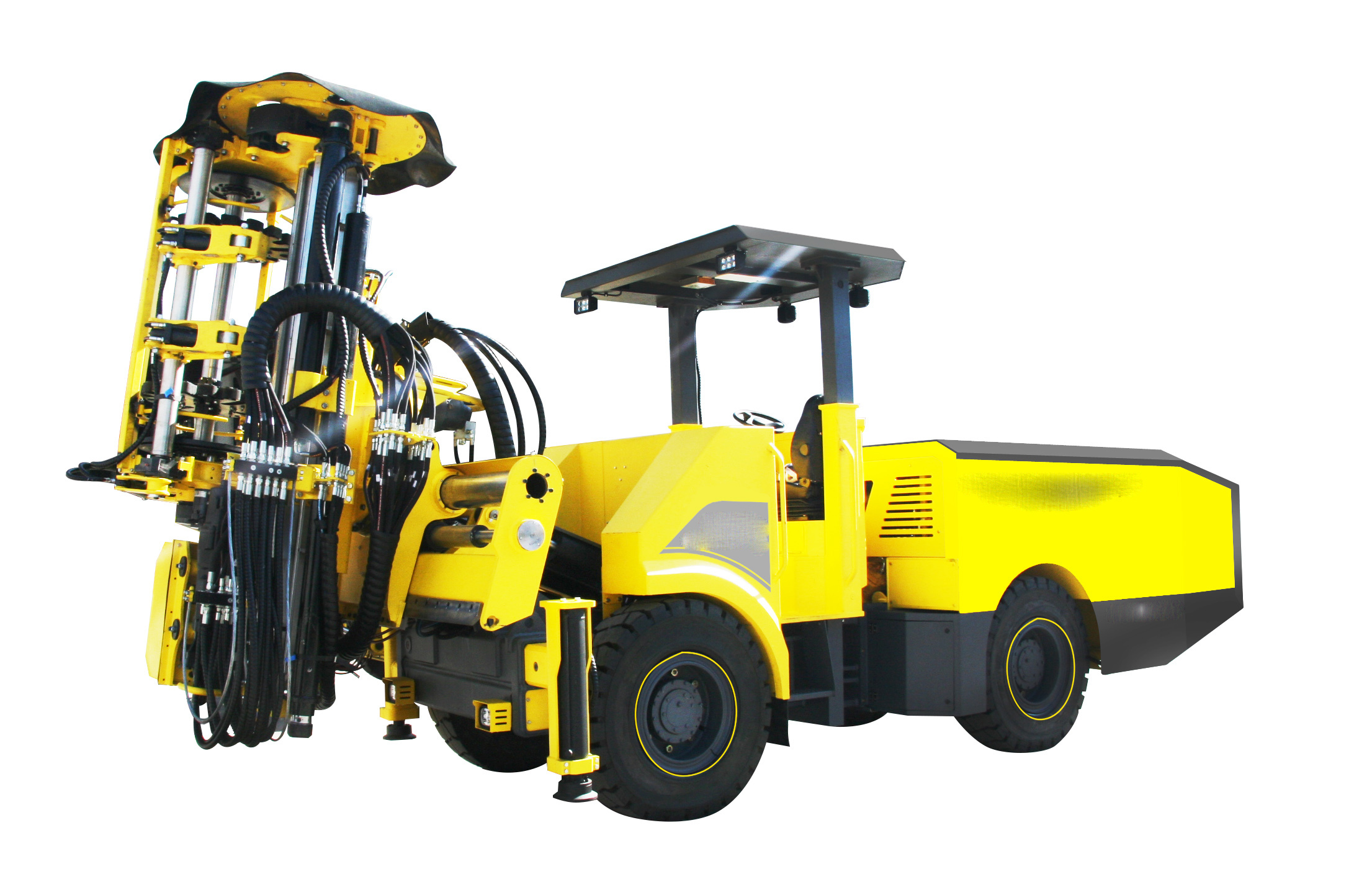

CYTC76 Hydraulic drilling jumbo is a kind of deep hole drilling rigs for underground mining production. It is equipped with drill rod storage bin which can be loaded with 28 pieces of drill rod. With a hole range of 64-89mm in diameter and a 27+1 rod handler for drilling up to 35m hole depth, it is suitable to drill vertical or tilted fan-shaped holes or 1.5m parallel holes (3m extendable). This jumbo is equipped with powerful hydraulic drifter and EHPCS operating control system, thus making a precise positioning, high productivity and quality drilling solution for underground mining production.
Technical Specifications
|
Hole Size |
φ64-φ89mm |
|
Hole Depth |
1220mm |
|
Drifter Model |
22U |
|
Impact Energy |
400J |
|
Hydraulic Drifter |
22Kw |
|
Rod Carousel Capacity |
27+1 |
|
Engine Power |
74Kw |
|
Voltage |
380V (Customized) |
|
Electric Motor |
75Kw |
|
Grade Ability |
14° |
|
Overall Dimension |
9100x2350x3010mm |
|
Total Weight |
16500Kg |
