Product Features

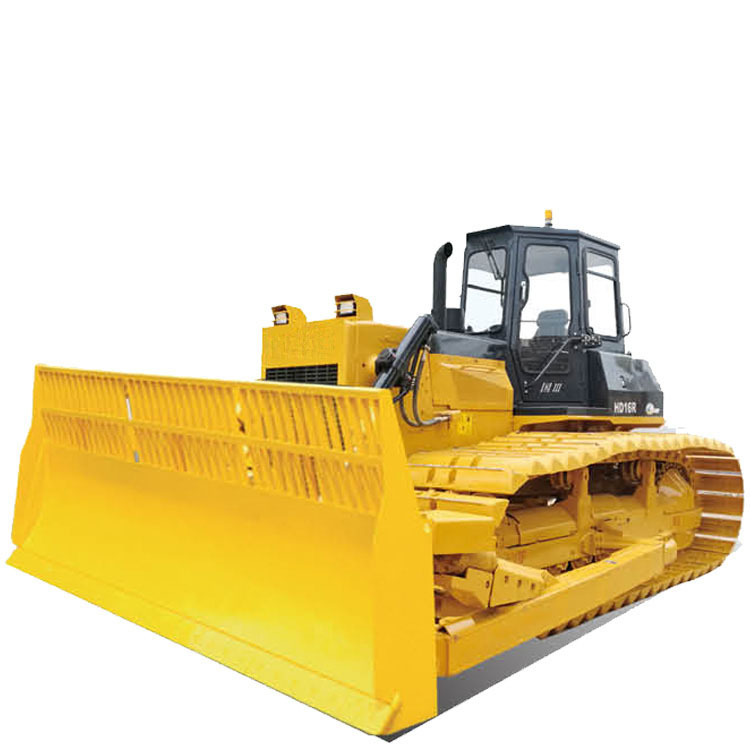

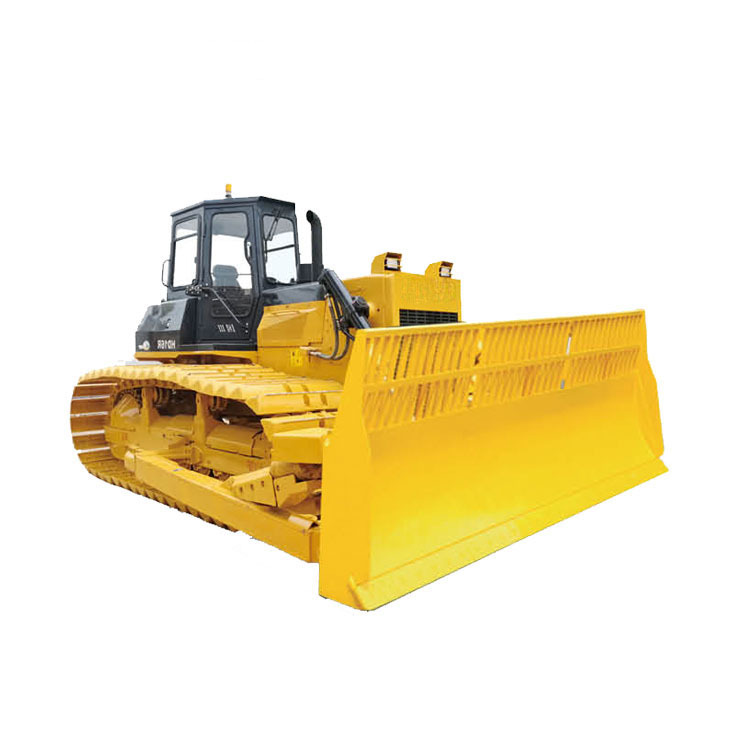

1.HD16R sanitation bulldozer is developed according to the needs of domestic urban sanitation treatment plants. It is suitable for landfill, leveling, semi compaction, stacking and other operations in the garbage field, and can also be used for the traction of garbage iron trough and treatment tank station. It is an ideal operation machine for sanitation treatment plants, wetlands and marshland.
2.The 8.3m3 sanitation shovel is equipped with strong cutting force and durability, which can deal with various working surfaces and efficiently handle the operation tasks in the sanitation field. The special heightening part on the upper part of the blade can prevent the working materials from entering the rear side of the blade.
Technical Parameters
|
Model |
HD16R |
|
Dimension (mm) |
5176×4170×3170 |
|
Weight (T) |
18.1 |
|
Engine model |
WP10G178E355/WD10G178E25 |
|
Power (kw/r/min) |
131/1850 |
|
Minimum fuel consumption g/KW. h |
214 |
|
Grounding length (mm) |
3140 |
|
Ground specific pressure (MPa) |
0.026 |
|
Minimum ground clearance (mm) |
492 |
|
Gradeability (°) |
30 |
|
No. of track shoes (each side) |
42 |
|
Width of Track shoe (mm) |
1100(950) |
|
Track Gauge (mm) |
2300 |
|
pitch (mm) |
203.2 |
|
No of carrier rollers (each side) |
2 |
|
No. of Track roller (each side) |
7 |
|
Maximum traction force (KN) |
144 |
|
Blade type |
Sanitation Blade |
|
Blade length x height (mm) |
4170×1580 |
|
Blade Capacity( m3 ) |
8.3 |
|
Blade lift height(mm) |
1005 |
|
Blade depth (mm) |
485 |
|
Maximum inclination of blade (mm) |
730 |
|
Forward (km/h) |
F1:0 〜 3.29 |
|
F2:0 〜 5.82 |
|
|
F3:0 〜 9.63 |
|
|
Reverse (km/h) |
R1:0 〜 4.28 |
|
R2:0 〜 7.59 |
|
|
R3:0 〜 12.53 |
|
|
Coolant capacity (L) |
79 |
|
Fuel tank capacity (L) |
315 |
|
Engine oil capacity (L) |
19 |
