Product Features

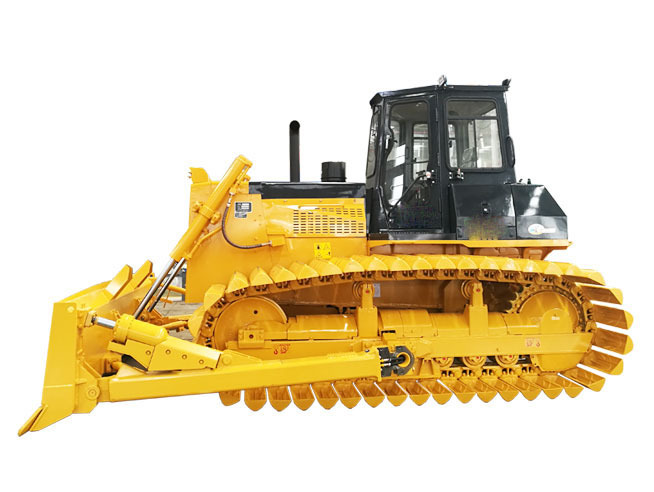

1.HD16S super wetland bulldozer is developed according to the needs of construction operations in swamp and wetland conditions. It is applicable to construction operations in soft soil, wetland and swamp areas, and is an indispensable engineering machinery for construction in soft places such as water conservancy construction.

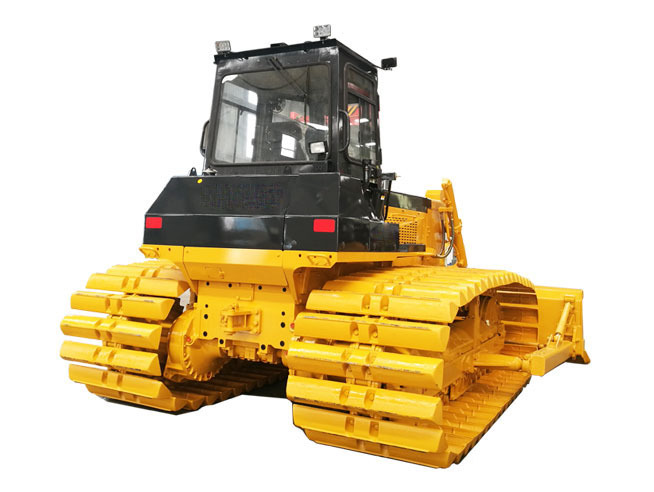

2.The extra wide triangular wetland track shoe can avoid the machine sinking when working in soft soil, wetland, swamp and other soft material workplaces.

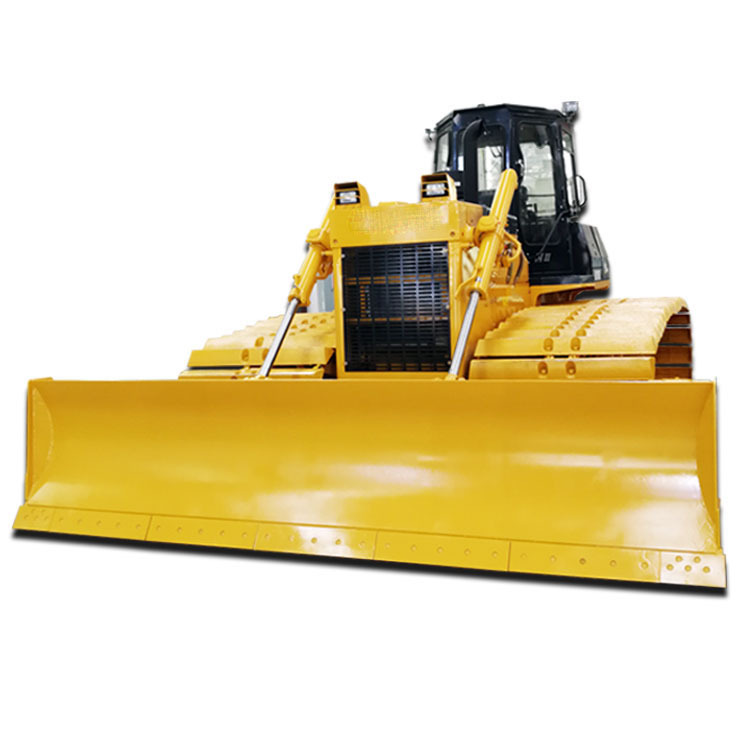

3.The larger width height ratio of the blade can better scrape the soft soil layer, which is suitable for the soft soil in various marshes and other places. The special design makes it more efficient.
Technical Parameters
|
Model |
HD16S |
|
Dimension (mm) |
5176×4190×3170 |
|
Weight (T) |
18.1 |
|
Engine model |
WP10G178E355/WD10G178E25 |
|
Power (kw/r/min) |
131/1850 |
|
Minimum fuel consumption g/KW. h |
214 |
|
Grounding length (mm) |
2935 |
|
Ground specific pressure (MPa) |
0.032 |
|
Minimum ground clearance (mm) |
492 |
|
Gradeability (°) |
30 |
|
No. of track shoes (each side) |
42 |
|
Width of Track shoe (mm) |
950(1100) |
|
Track Gauge (mm) |
2300 |
|
pitch (mm) |
203.2 |
|
No of carrier rollers (each side) |
2 |
|
No. of Track roller (each side) |
7 |
|
Maximum traction force (KN) |
144 |
|
Blade type |
Straight-tilt Blade |
|
Blade length x height (mm) |
4190×962 |
|
Blade Capacity( m3 ) |
3.8 |
|
Blade lift height(mm) |
1005 |
|
Blade depth (mm) |
485 |
|
Maximum inclination of blade (mm) |
730 |
|
Forward (km/h) |
F1:0 〜 3.29 |
|
F2:0 〜 5.82 |
|
|
F3:0 〜 9.63 |
|
|
Reverse (km/h) |
R1:0 〜 4.28 |
|
R2:0 〜 7.59 |
|
|
R3:0 〜 12.53 |
|
|
Coolant capacity (L) |
79 |
|
Fuel tank capacity (L) |
315 |
|
Engine oil capacity (L) |
19 |
